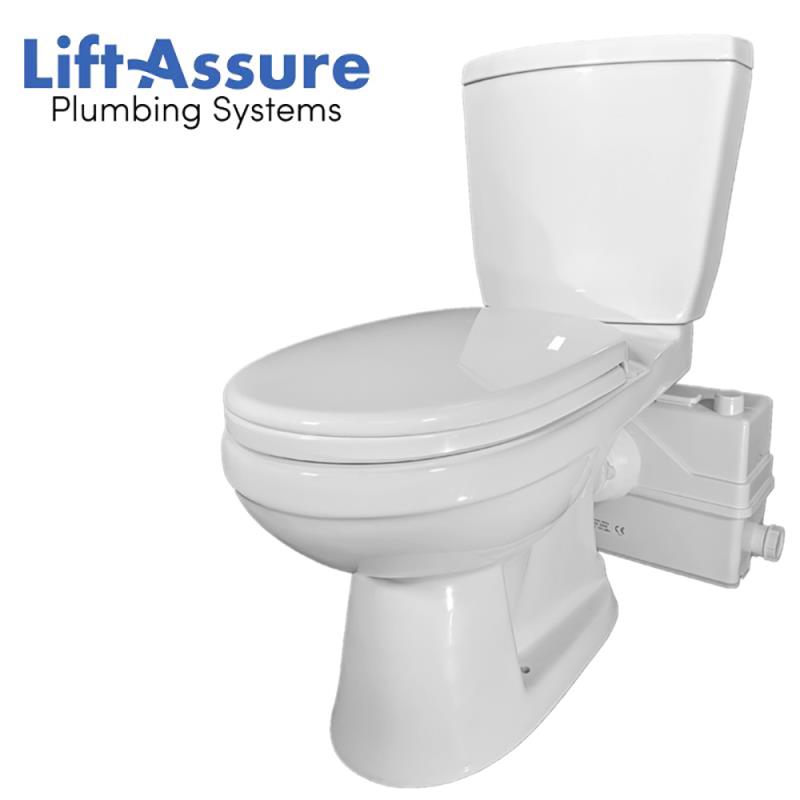

Lift Assure Macerating Pump and Elongated Toilet Kit

Others adding a full bath would prefer the comfort and feel of a full-sized elongated toilet. The sleek curves and modern design elements make this toilet the choice for those looking to build a full or half bath with all the comforts of any other bathroom in the house. Bowl height of 15 inches.

The toilet has a half flush and full flush button on the top of the tank. This water saving feature is a European standard that is being heavily adopted in the US to meet our increasing eco-awareness and cost saving measures. Button flushing, as opposed to side handle flushing, is a more reliable flush system. Side level flushing leads to flaps that go out of alignment, leaks, or the pull chain ripping. This all leads to a toilet requiring regular part replacement. Top button flushing is a more reliable way in that the flushing/water regulation components are aligned in a linear path and have lower system stresses and failure rates.

The sink and shower or bathtub can be any style or brand that you desire. There are no special requirements for plumbing purposes. For the sink, the pipes after the trap will be directed down to the macerating water processing system through simple angled couplings. A tub or shower will always require a bottom drainage system so the shower should be built up a 3 ½ inches above grade (floor level) and have the bottom drain directed at an angle to the pump. The pump is capable of moving 3.85 gallons of water per minute, more than enough to handle most shower heads which typically have a flow rate of 2.5 gallons per minute.

Product Specifications
Power Supply 120V
Input Ports
Duty Cycle 3.85 gpm, 10 foot lift,
1 hr on, 45 min. off
Frequency 60Hz
Toilet Material Ceramic
Flush Type Button; Dual
Color White
Toilet Depth Approx. 29 in.
Bowl Height 15 in.
