Part 1: Attaching Connections

---

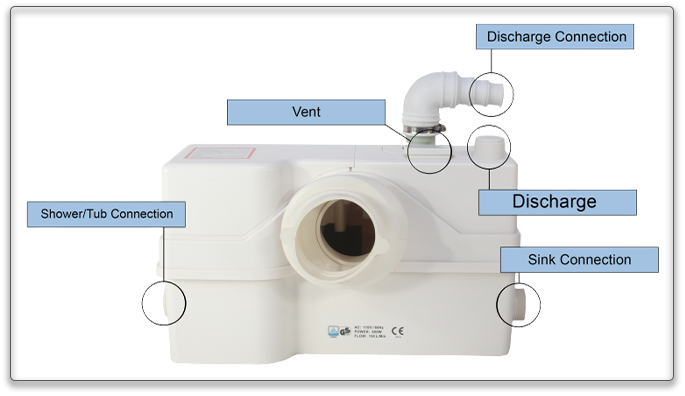

Part 2: Connection to Bath/Shower/Sink

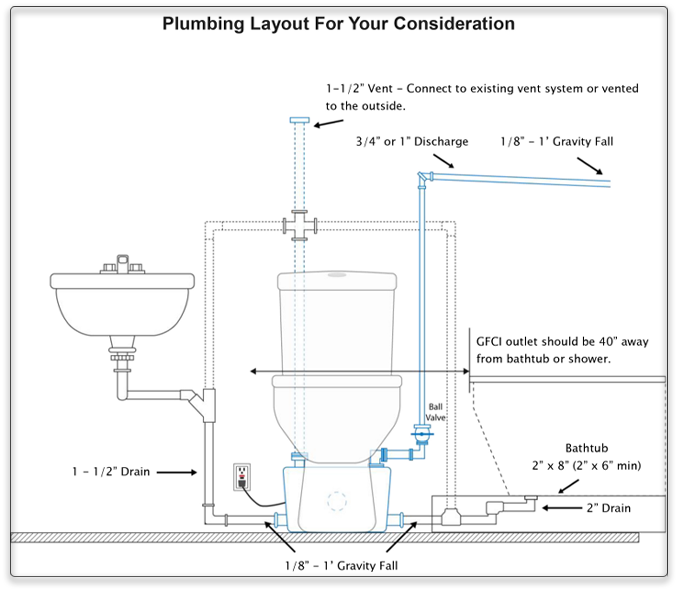

Before making any connections, make sure there is proper slope of all horizontal runs.

Bath and Shower Attachment:

1. For proper draining it is essential to elevate the shower/tub drain to a minimum of 9" above the finished floor of the installed pump. If applicable, adjust the height of the shower/tub drain upwards to allow proper grade for the plumbing connection to the pump.
2. If bathtub is connected, the 2" connection can be reduced to 1-1/2" with adequate slope into the pump.
3. Measure rigid pipe from 2” pump inlet to shower/bath drain.
4. Cut pipe to fit, then connect shower/tub to 2” inlet with proper slope.

Sink Attachment:

1. Measure rigid pipe from sink drain to 1-1/2 pump inlet.
2. Cut pipe to fit.

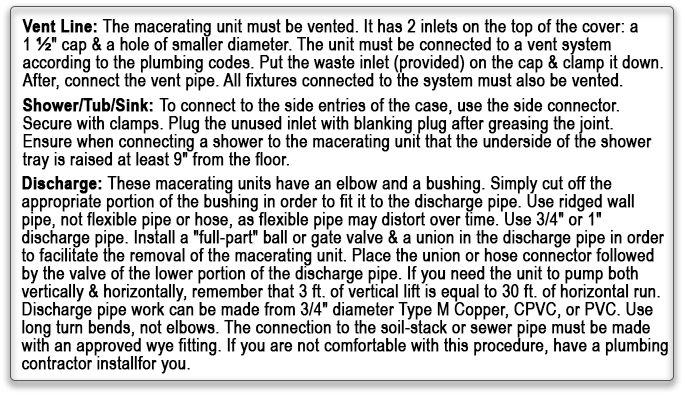

Vent to Vent Stack Attachment:
IMPORTANT: Do not use one-way air admittance valves (or cheater vents. Macerating pumps need two-way air movement. They must also be vented to the outdoors.

1. Measure rigid pipe from vent on pump to vent connection. Either to new or existing vent stack.
2. Connect rigid pipe to main vent stack of house or directly outdoors.

Discharge Line Attachment:
IMPORTANT: The pump discharge outlet has a built-in check valve. Do not install an additional check valve as this may cause the pump to malfunction.

1. Install 1-1/4" ball valve approximately 6” from pump discharge outlet.
2. Install 1-1/4" plumbing line to the home's main waste line. There must be at least 3 feet of run from the pump before connecting to the main waste line.

---

Part 3: Connecting Toilet and Pump

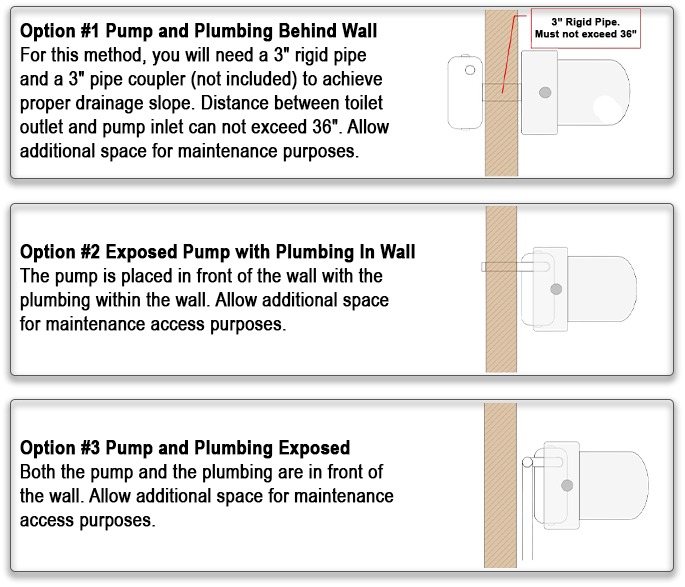

The following instructions apply for Option 1 shown above.

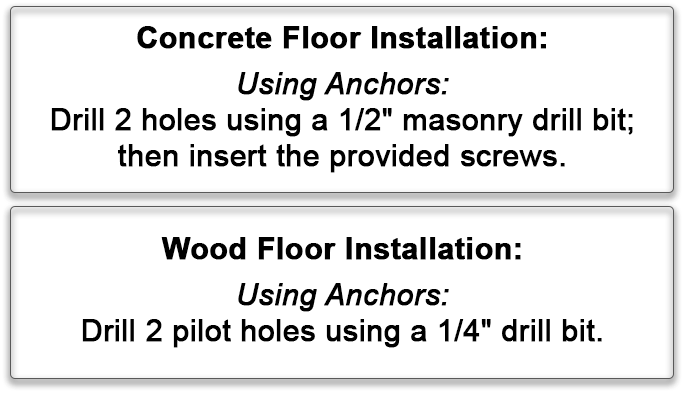

NOTE: Make sure the floor holes are drilled before you begin the following steps

1. Drill a hole in the wall sized to accommodate pipe slope.
2. Position clamp onto the toilet outlet. Hint: Apply soapy water to lubricate for easier clamp application; make sure you use nonpetroleum based products only!
3. Install the pan gasket in place making sure it covers at least 1-1/2” of the toilet outlet.
4. Cut a 3” rigid pipe to fit, do not let it exceed 36”.
5. Insert the pipe through the wall, connecting one end to the toilet outlet and the other to the macerator.

The following instructions apply for Option 2 and 3 shown above.

1. Position clamp onto the discharge outlet on the rear side of the toilet. If necessary, apply soapy water to lubricate the clamp for easy application.
2. Position the side cover of the macerator onto the toilet outlet and tighten, making sure it covers at least 1-1/2” of the outlet.

---

Part 4: Toilet Assembly
NOTE: Assemble water tank as explained in the supplied instruction sheet, before proceeding with the following steps.

1. Check to make sure toilet is leveled before securing the toilet to the floor.
2. Install water tank in place. It is recommended to apply caulk around the base of the opening.
3. Secure the water tank with the provided nuts and bolts.
4. Verify that proper placement of the hose is established.
5. Install the seat cover bolts into the proper position, and secure by hand-tightening.

---

Part 5: Testing the System

1. Finish connecting all fittings and fixtures.
2. Open the water supply valve to toilet and/or fixtures.
3. Check for leaks and correct as needed.
4. Plug the pump into wall outlet.
5. Flush toilet.
6. Double check for leaks, tighten and adjust clams and connections if necessary.

---

What to Expect
This toilet operates on a different principle than a typical siphon toilet, resulting in a different sound and flush action. When activated the pump pulses a few times.

Cleaning
Use only non-abrasive, non-petroleum products to clean the pump

Prime the Pump
If pump initially runs for more than 10 seconds, prime the pump as follows:

a. Unplug cord from wall outlet.
b. Wait 15 seconds. Plug cord back into wall outlet.
c. Flush again. If pump runs more than 10 seconds, repeats steps a-c.

Winterization
If the Lift Assure system is exposed to freezing temperatures, please make sure that al fixtures, inlet, and discharge lines are winterized using non-toxic propylene glycol (RV Marine Antifreeze. Use sufficient quantity of antifreeze to ensure all pipes are protected.
First, you must shut off the water supply. Flush toilet to empty the tank. Pour RV/Marine Antifreeze into toilet and all fixtures. Press manual switch to run antifreeze through system

Clearing Debris from Pump
While the Lift Assure does not need any maintenance under normal conditions, it is okay to clean out the macerating unit once a year.
DO NOT use bleach. The macerating unit starts automatically once the toilet is flushed or the other bathroom appliance discharge and cease operation once the contents have finished pumping
